Tennis Checkerboard

wip title page — HTML web app coupled with a Node server hosted on Vercel

Developed a real-time tennis tournament checkerboard web application using HTML/CSS/JavaScript that aggregates live match data from a custom-made API (hosted on Vercel).
Able to give notifications when a match changes court or players.
Widely used by my company’s live operations team during large tennis tournaments to keep up to date on court and player changes, as well as to keep track of the matches on their assigned court.

Making a project while on shift

2025

Context: My company broadcasts tennis grand slams. To keep up to date with the latests scores, games and players on different courts, we used to utilise a checkerboard that the grand slam organisation would provide for all broadcasters to use.

Problem: The Checkerboard is down!

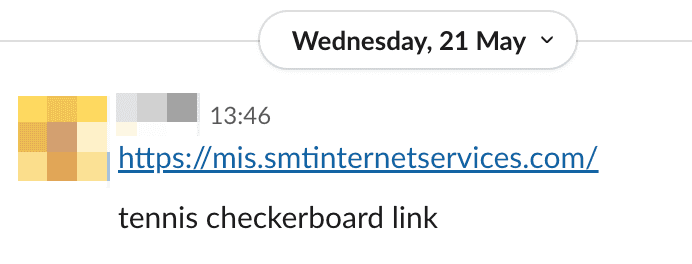

5 days before the tournament started, our normal checkerboard that we used for monitoring match updates was expected to work fine

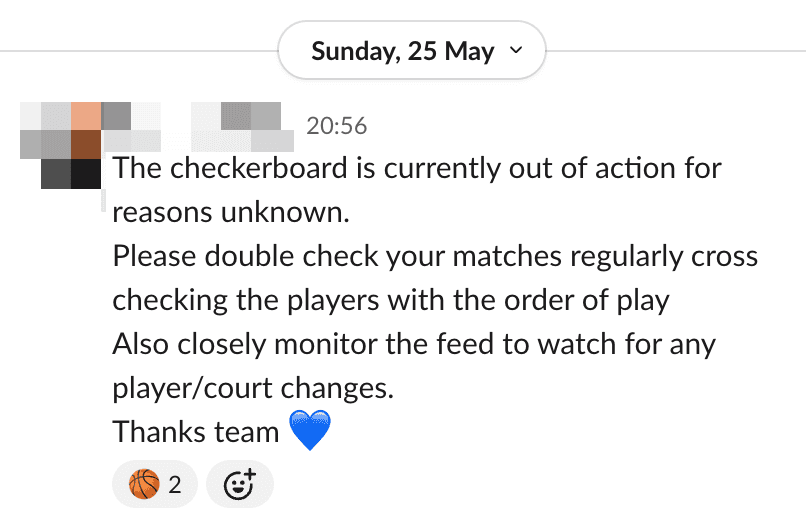

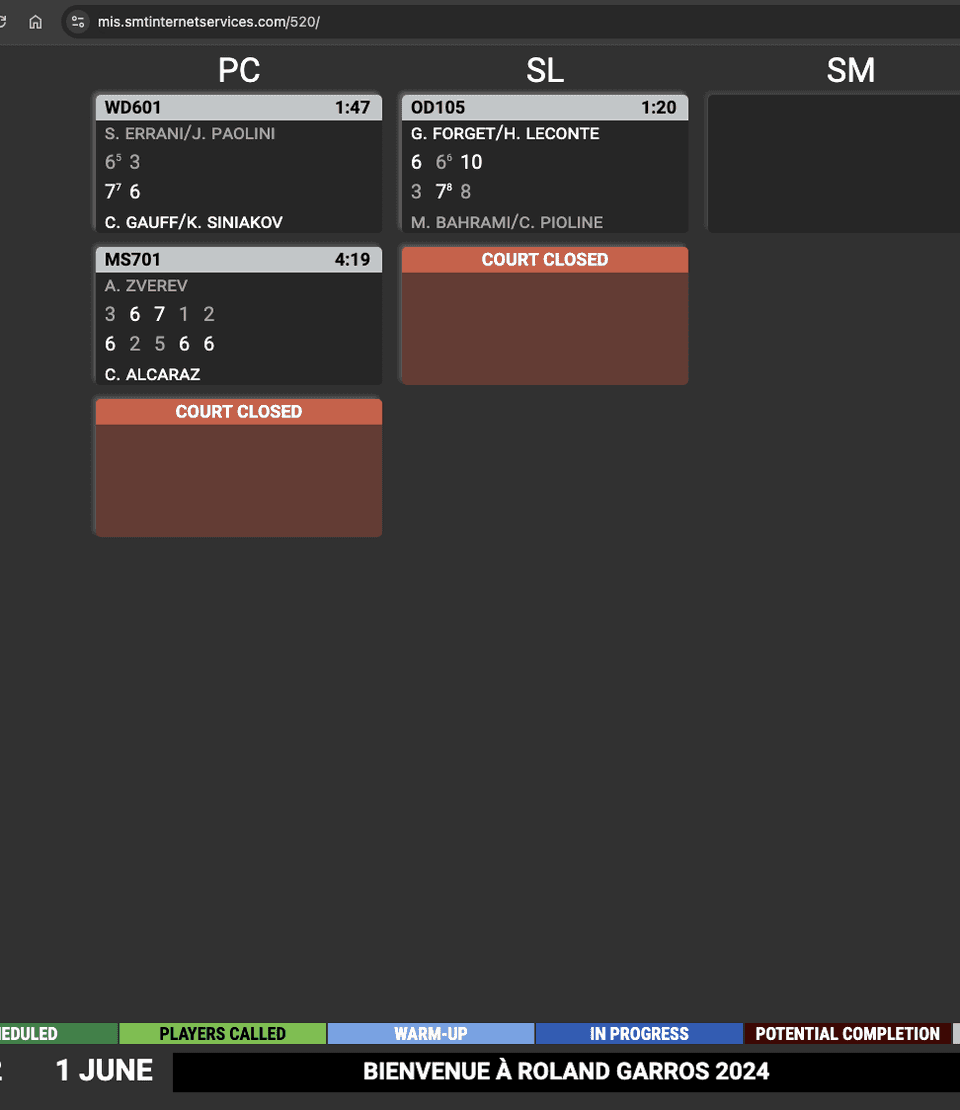

checkerboard down — Come Day 1, it was broken.

How did it break? So apparently the source for the original checkerboard (SMT) was changing their licensing, and so their checkerboard just didn’t work for the entirety of Roland Garros 2025..

Anyways, this was inconvenient for my team, so I tried looking for alternatives.

First I tried some random sports betting API coupled with another Roland Garros tennis court API. And it worked? But not very reliably? And it also didn’t give me very much useful information. Like barely anything at all.

And then I tried to hastily slap it together with a really ugly UI.

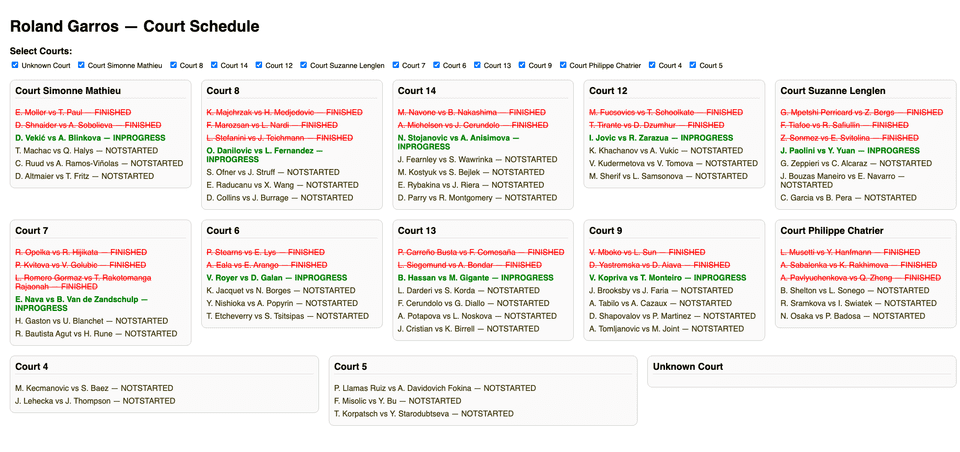

An early version of the makeshift checkerboard, ugly UI but better than nothing

I thought surely there was a better way to get this information (and for free? I had to do a free trial for those sports betting APIs access)

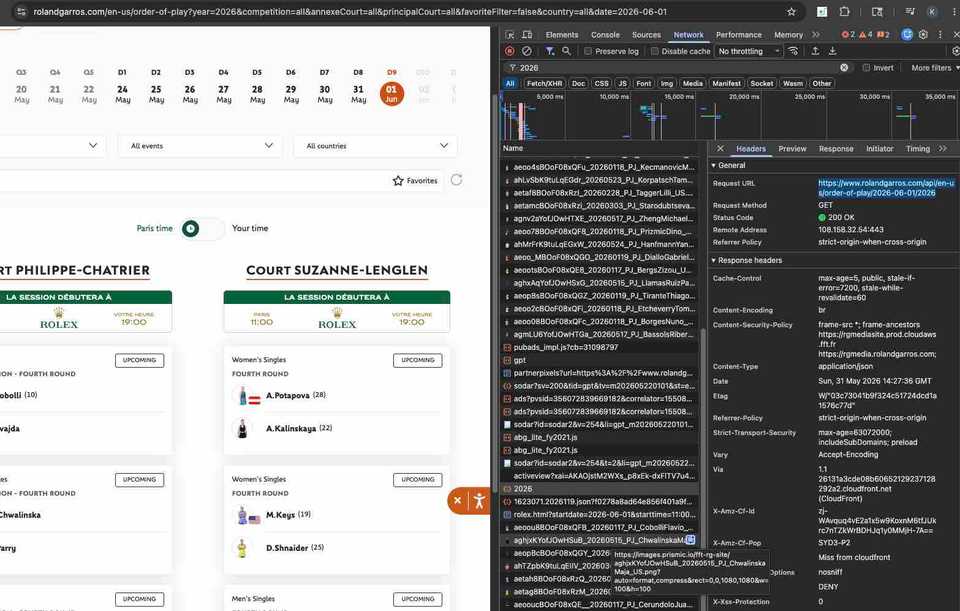

I went to Roland Garros’ order of play website and inspected the networks tab, found that it was calling this API: https://www.rolandgarros.com/api/en-us/polling

inspecting Roland Garros' order of play website

I thought maybe I could use it too, but that API had CORS protection?
So I had to make my own server/API to call it to bypass CORs.
tldr: roland garros has an api but webpage browser cannot access because of CORS

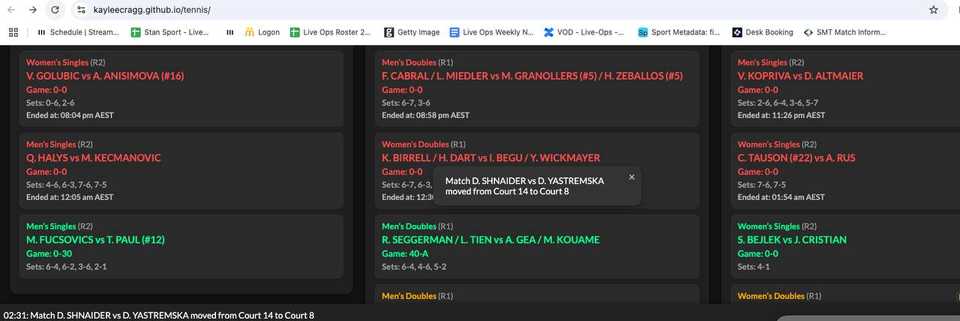

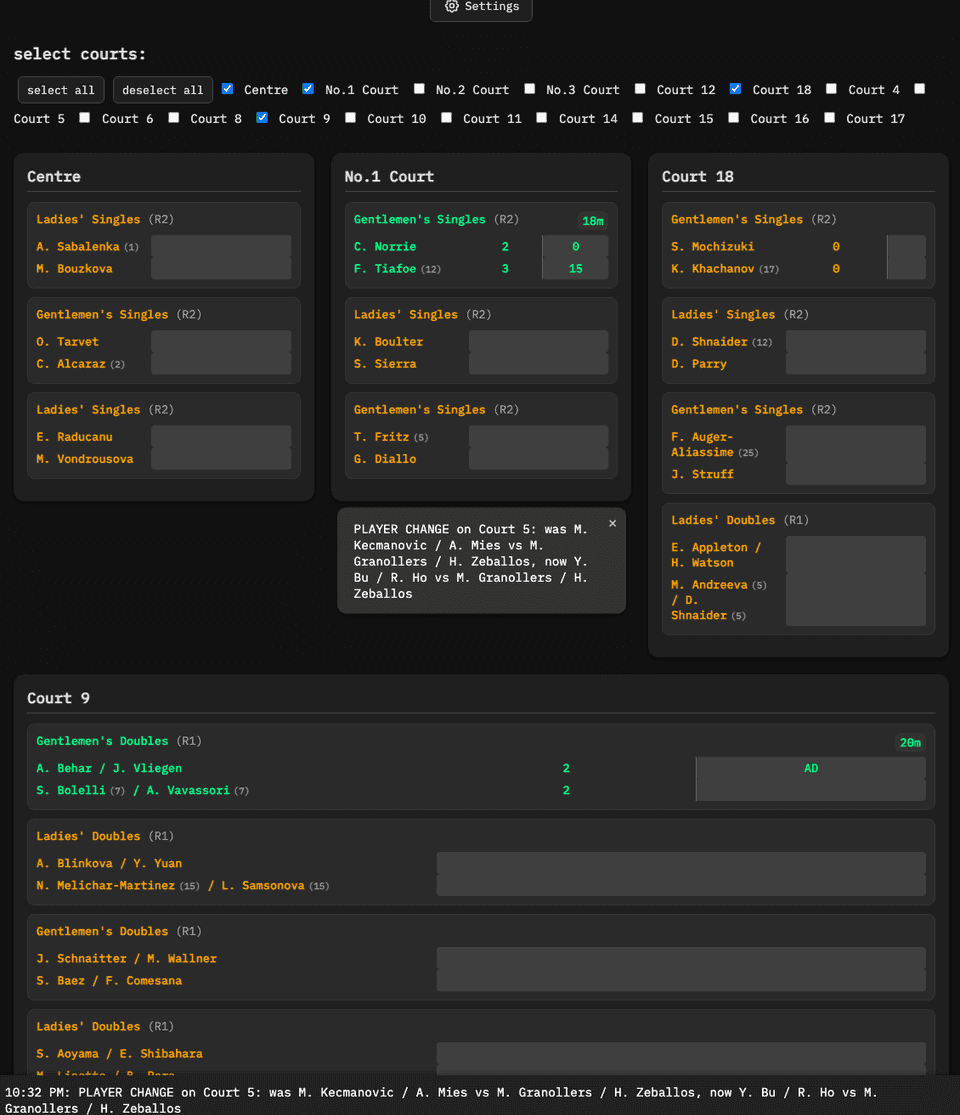

checkerboard1 — new features: notifications for court and player changes, and dark mode

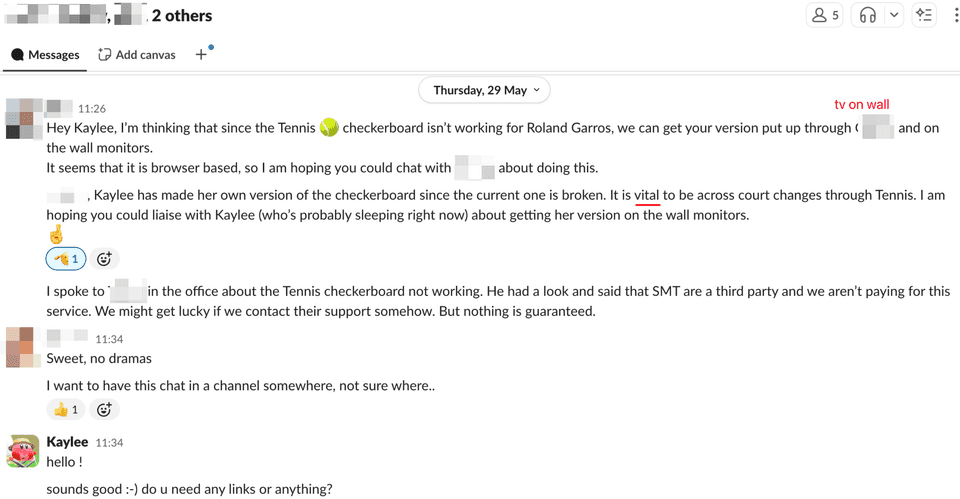

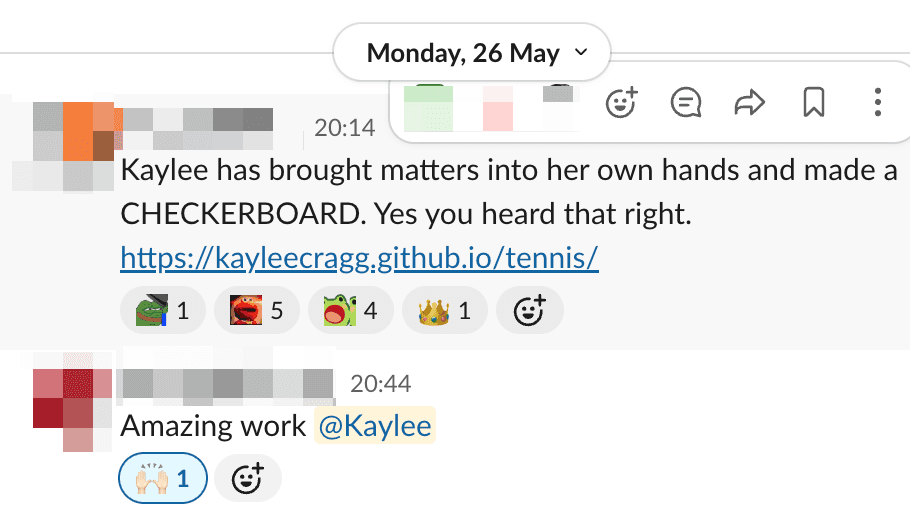

2025 shoutout — my boss(es) were happy with my creation :)

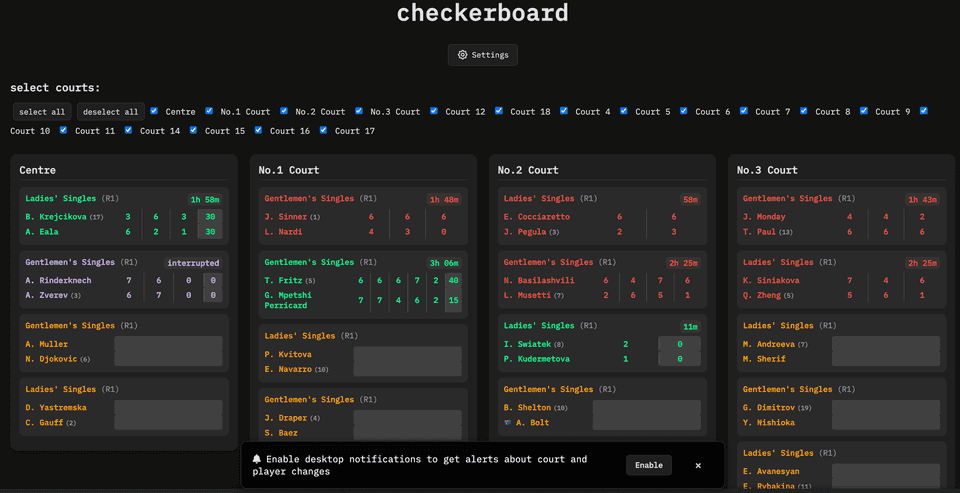

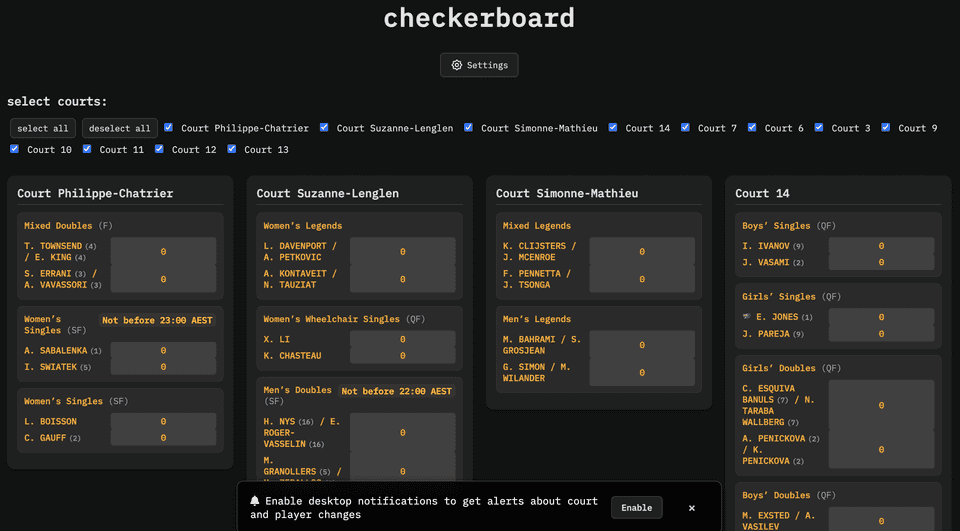

checkerboard — refining the UI so that it was easier to read the scores at first glance,
added special tags for australian players (for our specific business usecase)

uhh but i was hosting on my own machine using… nginx.. which brought uh multiple problems
bad practice !!!! very very bad expose secrets
so an engineer at work advised me to try hosting the server with vercel
vercel server made so that bypass CORS
vercel server queries https://www.rolandgarros.com/api/en-us/polling every time it is called by this web page (about every 1.5 seconds)

2026

anyways it got reused by my team the next year (may, 2026 for roland garros) because the mis checkerboard still down since 2024..

improvements made recently to increase interval check from 20 seconds to 1.5 seconds (which resulted in updates to scores coming in faster 😎)
this also allowed me to create a ad break notifier (since me company recently introduced ad breaks to customers)
i built another website on top of the fast time event triggers to help notify people when during the match to take ad breaks (there are specific timings)
can’t show this website for privacy purposes but!
here is the audio cue for when to roll a break

actually an a5 music note (880hz) with a sine tone and fade in/out effect

anyways yeah good outcome :)

2026 april award — got nominated for a monthly award (may) :)

2026 award — got nominated for a monthly award (june) :)

update: was able to do the same thing for wimbledon
